Benfleet Flood Barrier

Protecting us from flooding for the past 40 years

The Benfleet flood barrier was opened in 1983. It was built to help protect low lying areas of Canvey Island and Benfleet, such as Hopes Green, from flooding.

The main part of the flood defences is a raised sea wall around Canvey Island.  In this part of the creek it was considered better to build a barrier at each end, these being East Haven barrier and Benfleet barrier.

Planning for the barriers began in 1972 and was part of a scheme to raise the Canvey sea wall and build the Thames barrier. Work started on the Benfleet barrier in 1980 during the steel strike and was completed in 1983 at a cost of twelve million pounds. As they needed to build a cofferdam, the contractors imported and used Dutch steel. The dam was built during the summer of 1980. Contractors had to pile down over 100 feet in order to reach the bedrock under Benfleet’s clay.

The barrier is 90m wide and 10m high, with 3 openings, each 13m wide. Each opening contains a top hinged flap gate weighing 30 tons.  For normal tides the gates are left in the raised position.  In the event of a tide predicted to be higher than 3.4m at Southend, the gates are lowered to a vertical position using anchor chains.  Two winch motors, costing around £20million, operate the mild steel gates using a hydraulics system and 170-bar pressure – which equates to 2,466lbs per square inch.  A 106hp engine powers the barrier itself and if that fails, a backup engine is on standby.

The barrier was officially opened by the Treasury Secretary, John Wakeham M.P. on 25th February 1983.

On the 9th March, 2011 there was an open day for visitors to view the workings of the barrier. Benfleet Community Archive took advantage of this and recorded the occasion on video.

Resident Engineer, Donald Sanson, looks over the works from the roof of the barrier.
Echo Newspapers
The barrier under construction, with Benfleet Downs in the background.
Echo Newspapers
Under construction
Echo Newspapers
Under construction
Echo Newspapers

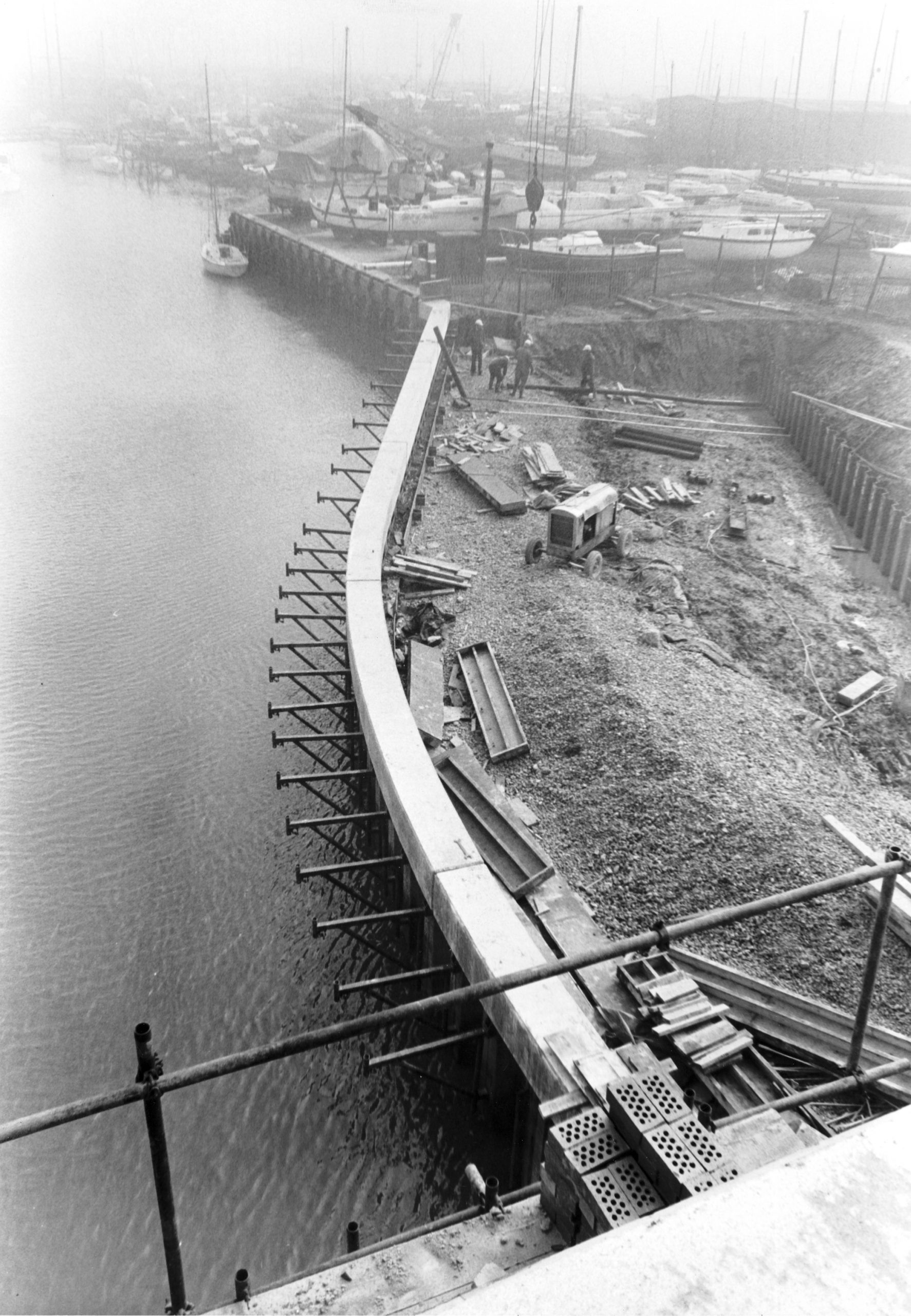

In the course of construction. In the background the boatyard and to the right Canvey Island.
Echo Newspapers
Barrier under construction.
Echo Newspapers
The Barrier under construction.
Echo Newspapers
Resident Engineer, Donald Sanson, on site during the course of construction.
Echo Newspapers
Construction work viewed from The Downs.
Echo Newspapers
Construction work viewed from The Downs.
Echo Newspapers
Opening Day. John Wakeham M.P. and Sir Bernard Braine M.P.
Echo Newspapers
John Wakeham M.P. opens the Benfleet Flood Barrier on the 25th February 1983.
Echo Newspapers
Visitors viewing the operating equipment.
Echo Newspapers
Tom Miller, Assistant District Engineer, South Essex for the National Rivers Authority, talks to visitors in the control room
Echo Newspapers
Tom Miller, Assistant District Engineer, shows brothers Richard and Craig Martin the workings of the south navigation gate control
Echo Newspapers
John Wakeham M.P. in the Flood Barrier Control Room.
Echo Newspapers
Visitors looking down at the steel gates
Echo Newspapers
Looking down at the steel gates
Echo Newspapers
From the barrier looking towards the bridge connecting South Benfleet to Canvey Island.
Echo Newspapers
General view of the barrier
Echo Newspapers
General view of the barrier
Echo Newspapers
OS map showing the location of both barriers
Tidal chart
Terry Joyce
Her Royal Highness the Princess Margaret, Countess of Snowdon, accompanied by the Chairman of the Council, Councillor F.P. Wood, inspecting the new Tidal Defence Barrier at Benfleet Creek, during her visit to Castle Point on Thursday, 5th April, 1984.
With thanks to Castle Point Council
Article from the Echo
Echo news
Article from the Echo
Echo Newspapers
